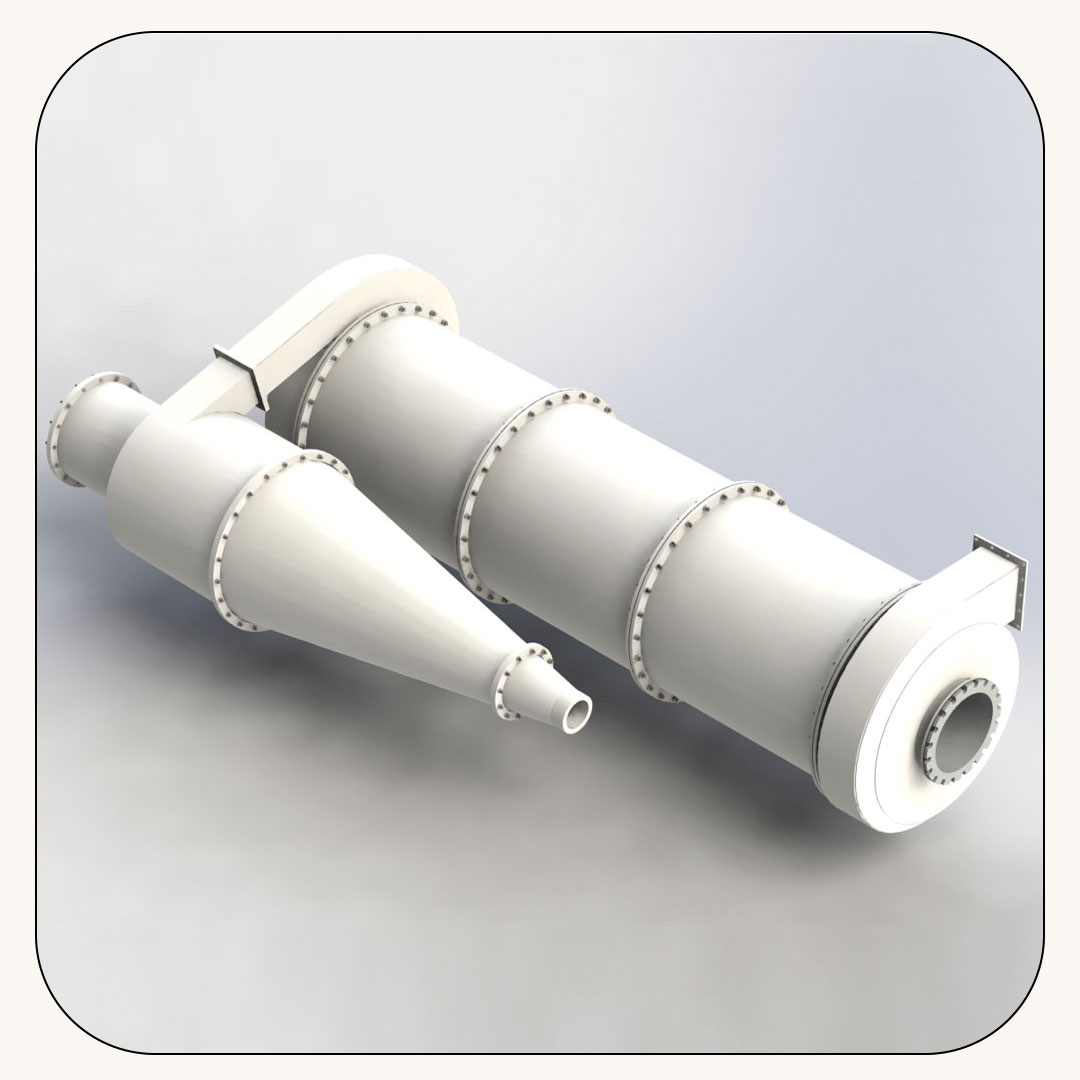

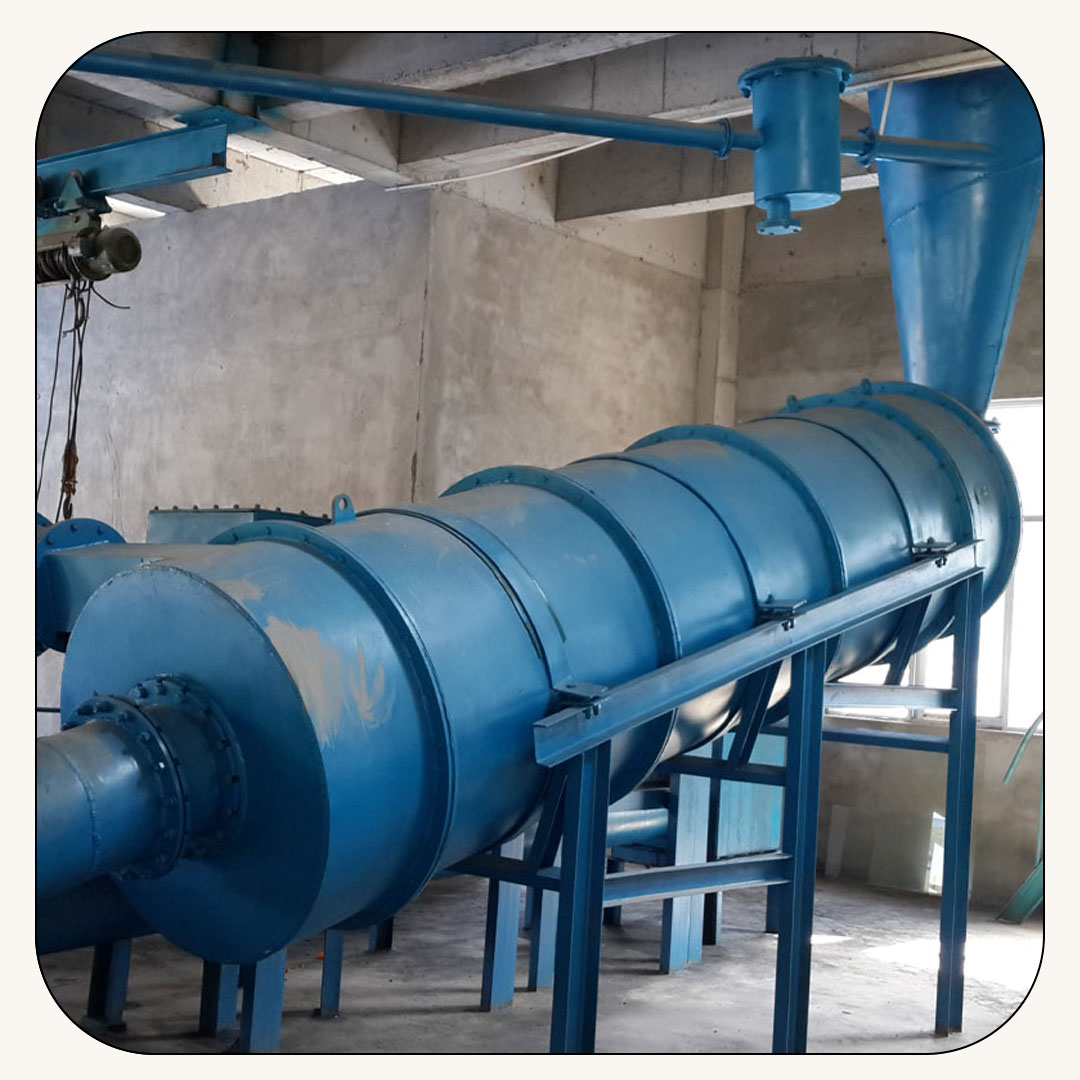

3SWX series pressureless three-product dense medium cyclone is a kind of dense medium main washing equipment developed by our company, which is mainly used for density separation of raw materials with a particle size of 0.5-100mm in coal preparation ore preparation plants.
Features:
- Adopting no pressure feeding method, the sorting precision is high, and the over-grinding is small.
- Lined with abrasion-resistant lining for long life.
- Equipped with a quick release mechanism for easy maintenance.
Technical Parameters:
| Device model | Inner diameter of a cylinder (mm) | Inner diameter of the second section cylinder (mm) | Feed size (mm) | Working pressure (Mpa) | Capacity (t/h) |
| 3SWX500/350 | 500 | 350 | 0-35 | 0.06-0.08 | 30-50 |
| 3SWX600/400 | 600 | 400 | 0-40 | 0.07-0.1 | 50-70 |
| 3SWX700/500 | 700 | 500 | 0-50 | 0.08-0.11 | 70-100 |
| 3SWX800/600 | 800 | 600 | 0-55 | 0.1-0.14 | 100-130 |
| 3SWX900/650 | 900 | 650 | 0-60 | 0.11-0.16 | 120-160 |
| 3SWX1000/700 | 1000 | 700 | 0-70 | 0.12-0.18 | 160-200 |
| 3SWX1100/800 | 1100 | 800 | 0-75 | 0.13-0.22 | 200-270 |
| 3SWX1200/850 | 1200 | 850 | 0-80 | 0.14-0.25 | 240-330 |
| 3SWX1300/920 | 1300 | 920 | 0-90 | 0.16-0.3 | 300-400 |
| 3SWX1400/1000 | 1400 | 1000 | 0-100 | 0.2-0.35 | 400-500 |
